Single Axis Solar Tracker Small Slew Drive With 24vdc Electrical Motor For Concentrated Solar Trackers
Description

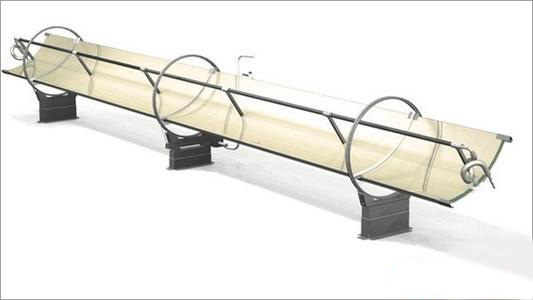

The trough solar thermal power generation technology concentrates the sunlight on the focal line through a trough parabolic concentrating mirror, and collector is installed on the focal line. To absorb the solar radiant energy after focusing. After the fluid in the tube is heated, it flows through the heat exchanger to heat the water to generate steam, which is generated by means of a steam power cycle. The trough solar thermal power generation system mainly includes a heat collecting system, a heat storage system, a heat exchange system, and a power generation system.
The heat collecting system is mainly composed of a heat collecting tube, a collecting mirror surface, a supporting structure and a control system. The slew drives are the key part in the supporting structure.
Features
1. Rotate from 0~180°
2. Connect a driving motor on the left or right side
3. Grease had been filled before factory
4. Simple installation
5. Rational space utilization
6. The gear is self-locking; therefore a brake is not necessary
7. Easy and fluent method of starting and stopping
8. High backholding torque, suitable for vertical installation
9. Low maintenance
Vertical Slew Drive Performance Parameters
| Model | Ratio | Rated Output Torque | Tilting Torque | Axial Load | Radial Load | Holding Torque | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | kN | kN | N.m | degree | Yes | kg |
| 3" | 31:1 | 300 | 1500 | 3.6 | 15 | 7000 | 40% | ≤0.1 | Yes | 13kg |
| 5" | 37:1 | 637.5 | 5000 | 16 | 27 | 9200 | 40% | ≤0.1 | Yes | 18kg |
| 7" | 57:1 | 1750 | 7000 | 34 | 58 | 13200 | 40% | ≤0.1 | Yes | 28kg |
| 8" | 51:1 | 2250 | 11200 | 50 | 80 | 20400 | 40% | ≤0.1 | Yes | 35kg |
| 9" | 61:1 | 4300 | 16000 | 60 | 130 | 27200 | 40% | ≤0.1 | Yes | 51kg |
| 12" | 78:1 | 5600 | 25000 | 77 | 190 | 40560 | 40% | ≤0.1 | Yes | 61kg |
| 14" | 85:1 | 6750 | 48000 | 110 | 230 | 44200 | 40% | ≤0.1 | Yes | 78 kg |
| 17" | 102:1 | 9460 | 67000 | 142 | 390 | 53040 | 40% | ≤0.1 | Yes | 105 kg |
| 21" | 125:1 | 16000 | 89000 | 337 | 640 | 65000 | 40% | ≤0.1 | Yes | 185 kg |
| 25" | 150:1 | 21450 | 112000 | 476 | 950 | 89000 | 40% | ≤0.1 | Yes | 244 kg |
